ME195

Technology

19.0-inch , monochrome, TFT, IPS technology

Display Area

376 mm x 301 mm

Pixel Pitch

0.294 mm x 0.294 mm

Contrast Ratio

1000:1 (typ)

Maximum Luminance

1400 cd/m² (typ)
450 cd/m² (Calibrated)

Viewing Angle

170° horizontal and vertical (typ)

1280 x 1024 (SXGA)

Input Signals

VGA D-sub mini 15pin, DVI-D 24pin, BNC x 3
H-sync V-sync

Output Signal

BNC Analog Video

Plug and Play

DDC2B compliant

Power Requirements

100V - 240V, 50/60Hz

Maximum Power Consumption

49W

OSD

Auto adjustment, Brightness, Contrast, etc

Gamma presets

1.6, 1.8, 2.0, 2.2, 2.4 and DICOM GSDF

ANSI/AAMI ES60601-1(2005), CAN/CSA C22.2 NO. 60601-1(2008), CE (EN60601-1, EN60601-1-2), FCC class B, VCCI class B, ICES-3-B, CCC, RCM, J-Moss, RoHS

Dimensions
(W x H x D)

342 x 558 x 220 mm

Weight

9.2 kg (Without stand 5.0 kg)

Tilt Stand

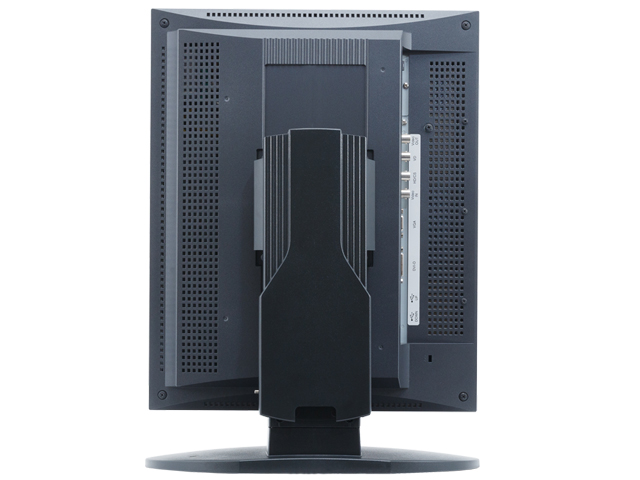

Tilt, Swivel, Portrait / Landscape

Mount

VESA standard (100 mm x 100 mm)

Security Slot

Anti-theft security slots (display and tilt stand)

Power cord, VGA cable, DVI cable, User manual
